Midlands Metro Alliance – Tram Stops

Client:
BCS Group, Kone, Midlands Metro Alliance

Project Type:
New Railway Bridge, New Footbridge, Access for All Footbridges, Footbridge Replacement, Design, Construction, Refurbishment

In 2023, Crouch Waterfall, in collaboration with BCS Group and Kone, undertook a project commissioned by Midlands Metro Alliance to design the structural steelwork for five tram stop lift shafts. These tram stops, located along the route between Wednesbury and Brierly Hill in the Midlands, will deliver significant benefits to the region. The project will enhance connectivity within the Black Country, linking it to HS2, while improving air quality, reducing noise pollution, and supporting the local economy by facilitating access between communities and employment opportunities.

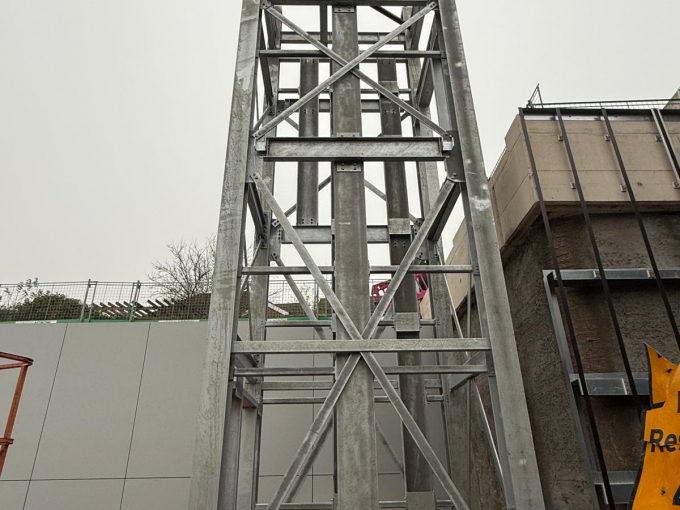

Crouch Waterfall’s scope of work included designing the structural steelwork for the lift shafts, ensuring their overall stability, and developing the connections, fixings, baseplate connections, and anchors. The team also designed the staircases and platforms that connect street level to the tram platforms. Advanced 3D modelling was employed using Bentley’s MicroStation, ensuring seamless coordination with architectural models to prevent design clashes.

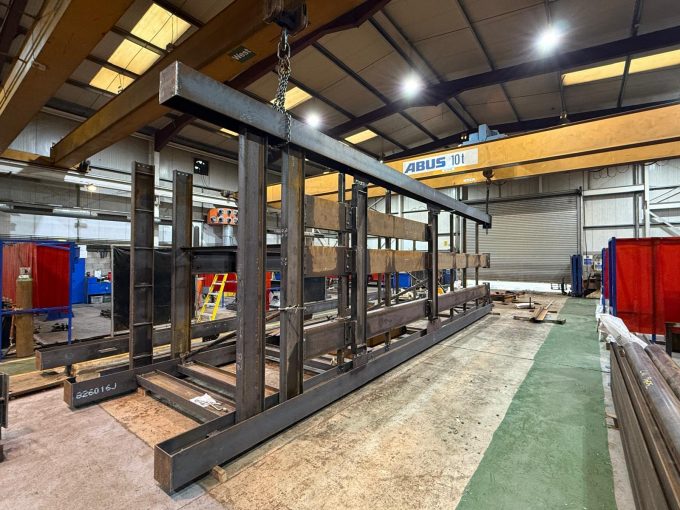

An innovative approach was applied to the project, with the lift shafts manufactured and assembled offsite by BCS Group. This offsite construction method allowed for efficient transportation and installation, reducing time, conserving resources, and ensuring the tram platforms remained operational throughout the construction period.
